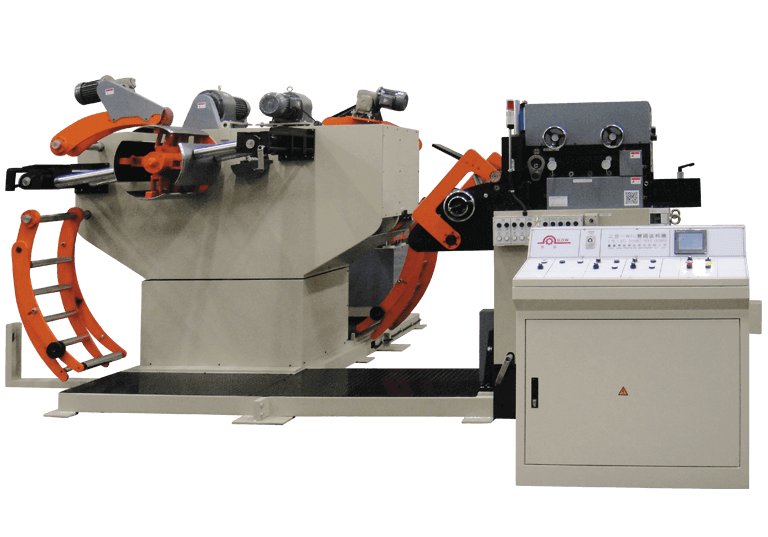

3 IN 1 NCL
Uncoiler / Straightener / Feeder Series

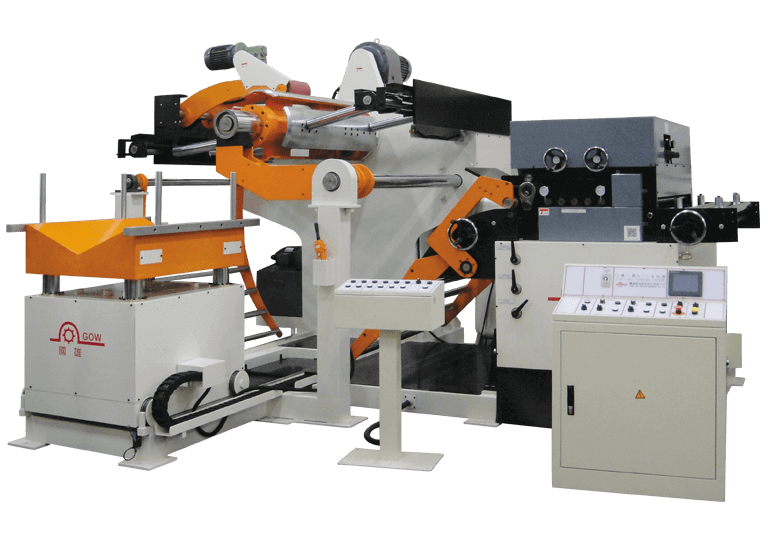

3 IN 1 NCL–DH
Twin Type Uncoiler / Straightener / Feeder Series
3 IN 1 NCL
Wide Material Uncoiler / Straightener / Feeder Series
Specialty
- Saving space over 60%
- Height efficiency
- Feeding accuracy
- Height stability
- Height precision
Servo Control System
Main menu : Can choose Chinese and English language menu
Single Mode : For stamting testing run purpose and Single safe mode operation
Press Mode : Continual operation mode under press control
NC Mode : Continual operation mode under feeder control
I/0 MONITORING SCREEN
ALARM MESSAGE SCREEN
Programmable Multi - Pitch Setting
Material length setting: Applicable for multi-feeding length setting requirment.
Save Memory Function This function
This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory.
- New concept and design reduces space requirements.
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine
Interface control system. - Auto feed monitoring function which can be a safety operation when the unit
interlock with press stamping operation.
- Feeder rolls and straightener rolls have undergone special heat treatment of HRC 60° for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.
- Uncoiler hydraulic expansion design makes the job
more efficiently. - Collocation twin type uncoiler and coil car, save
loading coil time increase efficiency.
NCL1 Series + Uncoiler
Specifications
NCL1 Series
| Modle | NCL1-300 | NCL1-400 | NCL1-500 | NCL1-600 | NCL1-700 | NCL1-800 | NCL1-900 | NCL1-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.3 ~ 1.0 | |||||||
| Feed Roll (mm) | 70 x 2 pcs | |||||||
| Work Roll (mm) | 40 x 9 pcs | 40 x 9 pcs | 40 x 9 pcs | 40 x 9 pcs | 50 x 9 pcs | 50 x 9 pcs | 50 x 9 pcs | 50 x 9 pcs |
| Work Roll Arrangement | Upper 5 / Lower 4 | |||||||
| Main Servo Motor (kW) | 2.0 | 3.5 | 3.5 | 3.5 | 5.0 | 5.0 | 5.0 | 5.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 |
NCL2 Series + Uncoiler
Specifications
NCL2 Series
| Modle | NCL2-300 | NCL2-400 | NCL2-500 | NCL2-600 | NCL2-700 | NCL2-800 | NCL2-900 | NCL2-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.4 ~ 2.0 | |||||||
| Feed Roll (mm) | 70 x 2 pcs | 96 x 2 pcs | 132 x 2 pcs | |||||
| Work Roll (mm) | 50 x 9 pcs | 50 x 9 pcs | 50 x 9 pcs | 60 x 9 pcs | 60 x 9 pcs | 60 x 9 pcs | 60 x 9 pcs | 72 x 9 pcs |
| Work Roll Arrangement | Upper 5 / Lower 4 | |||||||
| Main Servo Motor (kW) | 2.0 | 3.5 | 3.5 | 3.5 | 5.0 | 5.0 | 5.0 | 7.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 |
NCL3 Series + Uncoiler
Specifications
NCL3 Series
| Modle | NCL3-300 | NCL3-400 | NCL3-500 | NCL3-600 | NCL3-700 | NCL3-800 | NCL3-900 | NCL3-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.5 ~ 3.0 | |||||||
| Feed Roll (mm) | 96 x 2 pcs | 112 x 2 pcs | 132 x 2 pcs | |||||
| Work Roll (mm) | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | |||||||
| Main Servo Motor (kW) | 3.5 | 3.5 | 3.5 | 5.0 | 5.0 | 5.0 | 5.0 | 7.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 |
NCL4 Series + Uncoiler
Specifications
NCL4 Series
| Modle | NCL4-300 | NCL4-400 | NCL4-500 | NCL4-600 | NCL4-700 | NCL4-800 | NCL4-900 | NCL4-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.8 ~ 4.0 | |||||||
| Feed Roll (mm) | 112 x 2 pcs | 132 x 2 pcs | ||||||
| Work Roll (mm) | 72 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | |||||||
| Main Servo Motor (kW) | 3.5 | 5.0 | 5.0 | 5.0 | 7.0 | 7.0 | 7.0 | 11.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 2 | 2 | 3 | 3 | 5 | 5 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 5.5 | 5.5 |
NCL5 Series + Uncoiler
Specifications
NCL5 Series
| Modle | NCL5-300 | NCL5-400 | NCL5-500 | NCL5-600 | NCL5-700 | NCL5-800 | NCL5-900 | NCL5-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 1.0 ~ 5.0 | |||||||
| Feed Roll (mm) | 114 x 2 pcs | 132 x 2 pcs | ||||||
| Work Roll (mm) | 84 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | |||||||
| Main Servo Motor (kW) | 5.0 | 5.0 | 5.0 | 7.0 | 7.0 | 7.0 | 11.0 | 11.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 2 | 2 | 3 | 3 | 5 | 5 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 5.5 | 5.5 |
NCL6 Series + Uncoiler
Specifications
NCL6 Series
| Modle | NCL6-300 | NCL6-400 | NCL6-500 | NCL6-600 | NCL6-700 | NCL6-800 | NCL6-900 | NCL6-1000 |
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 1.0 ~ 6.0 | |||||||
| Feed Roll (mm) | 114 x 2 pcs | 132 x 2 pcs | 144 x 2 pcs | |||||
| Work Roll (mm) | 96 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs | 120 x 7 pcs | 120 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | |||||||
| Main Servo Motor (kW) | 5.0 | 5.0 | 7.0 | 7.0 | 7.0 | 11.0 | 11.0 | 15.0 |
| Air Supply (kg/cm2) | 5 | |||||||
| P.L.H Adjustment (mm) | Cust. Demand High ±100 | |||||||
Uncoiler
| Width of Material (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 or 1500 | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Uncoiler Motor (HP) | 1 | 2 | 2 | 3 | 3 | 5 | 5 | 5 |
| Uncoiler Inverter (kW) | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 5.5 | 5.5 |
Standard Accessories
- Programmable multi – pitch setting with cutting signal output function.
( Cutting signal output function is able to control the cutting device. ) - HMI touch screen control panel.
- 2 points micro adjustment ( Attached with dial gauge )
- Straightener work rolls air release.
- Motor drive uncoiler with inverter control.
- Uncoiler photoelectric sensor control unit.
- Uncoiler hydraulic mandrel expansion device.
- Manual coil guide.
- Snubber arm.
- Carry over guide.
- Carry over clamp. (Applicable to NCL4 above)
- Peeler.
- Pre – bender. (Applicable to NCL4 above)
Optional Accessories
- Flip – Top straightener head device.
- Coil car (Coil loading assisting device).
- Motorized pass line high adjustment device.
- Clamping peeler device.
