GO / GL Type

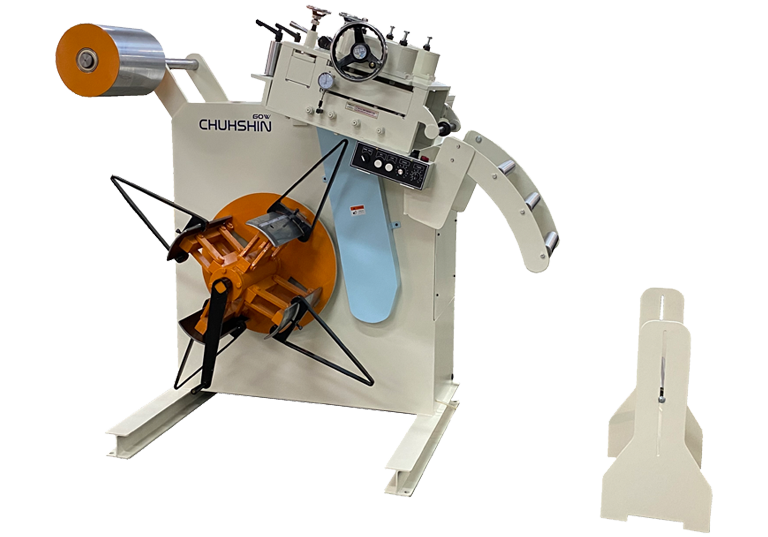

2 IN 1 Compact Uncoiler & Straightener (Uncoiler with the motor)
GO / GL Type
2 IN 1 Compact Uncoiler & Straightener（Standard）
Specialty
- Height efficiency
- Saving space over 40%
- Height stability
- 2 in 1 uncoiler &straightener is designed for save the space.
- Custom-made accessories for pneumatic snubber arm, hydraulic expansion device…etc. It is welcome for any your special demand to create your own suitable machine.
- Friendly operation controlled by adopting the independent control cabinet.
- Customer can optional the dual inverter driving motorsto reduce the scratching problem of the material surface.
GO Series + Uncoiler
Specifications
GO Series
| Modle | GO-200 | GO-300 | GO-400 | GO-500 | GO-600 | GO-700 | GO-800 | GO-900 | GO-1000 |
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.5 ~ 1.6 | ||||||||
| Feeding Upper Rolls (mm) | 60 x 2 pcs | ||||||||
| Feeding Lower Rolls (mm) | 80 x 2 pcs | ||||||||
| Straightener Rolls (mm) | 50 x 7 pcs | 50 x 7 pcs | 50 x 7 pcs | 50 x 7 pcs | 50 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs |
| Straightener Motor (HP) | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 5 |
Uncoiler
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1000 | 1000 | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 (Option : Ø300 ~ 520) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 | ||||||||
| Uncoiler Expansion | Manual or Hydraulic | Hydraulic | |||||||
| Uncoiler Motor - Option (HP) | 1/2 | 1/2 | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
| Uncoiler Inverter - Option (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
GL Series + Uncoiler
Specifications
GL Series
| Modle | GL-200 | GL-300 | GL-400 | GL-500 | GL-600 | GL-700 | GL-800 | GL-900 | GL-1000 |
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material (mm) | 0.5 ~ 3.0 | ||||||||
| Feeding Upper Rolls (mm) | 70 x 1 pce | ||||||||
| Feeding Lower Rolls (mm) | 98 x 1 pce | ||||||||
| Straightener Rolls (mm) | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 60 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs | 72 x 7 pcs |
| Straightener Motor (HP) | 1 | 2 | 2 | 2 | 3 | 3 | 5 | 5 | 7.5 |
Uncoiler
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Max. Coil Weight (kg) | 1000 | 1000 | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 |
| Coil I.D. (mm) | Ø450 ~ 520 (Option : Ø300 ~ 520) | Ø450 ~ 520 | Ø480 ~ 520 | ||||||
| Max. Coil O.D. (mm) | 1200 | ||||||||
| Uncoiler Expansion | Manual or Hydraulic | Hydraulic | |||||||
| Uncoiler Motor - Option (HP) | 1/2 | 1/2 | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
| Uncoiler Inverter - Option (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
Standard Accessories
- Touch loop control sensor.
- Material holder.
- A frame type coil guide.
Optional Accessories
- Straightener dial gauge.
- Straightener inverter.
- Uncoiler motor driving.
- Uncoiler inverter.
- Hydraulic expansion device.
- Snubber arm.
- Quick fixed coil guide.
- Ultrasonic speed loop control sensor.
- Photoelectric sensor.
- Coil car (Coil loading assisting device).
