HNC High Speed Servo
Feeder Series
Inquiry
HNC High Speed Servo
Feeder Series
Specialty
- Speed fast
- Feeding accuracy
- Height stability
- Special software program demand
Servo Control System

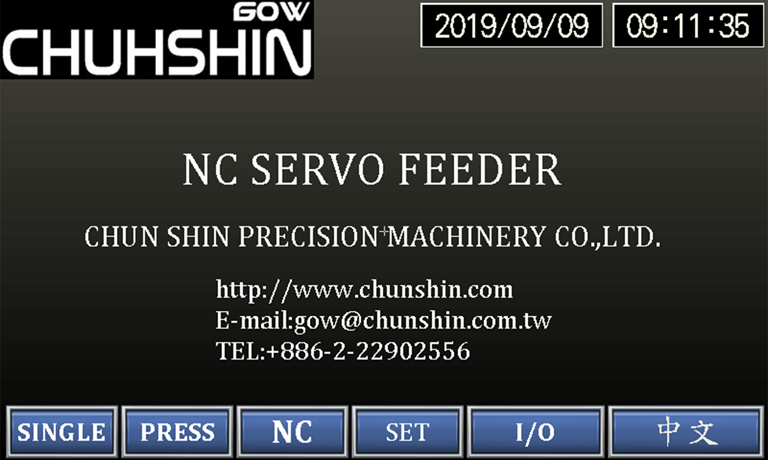

Main menu : Can choose Chinese and English language menu

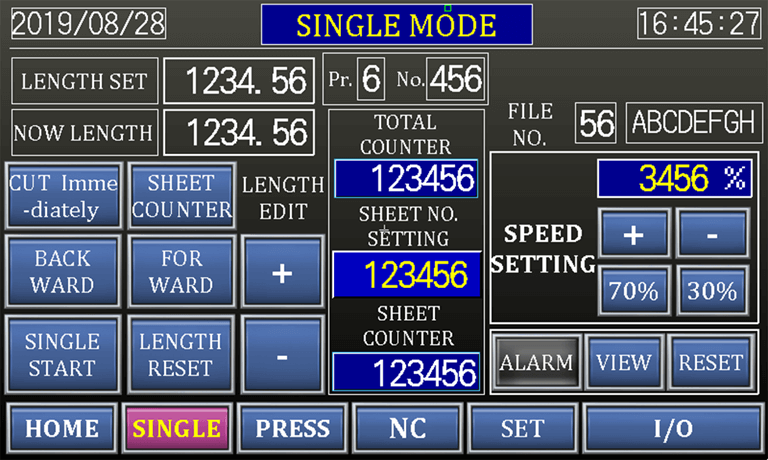

Single Mode : For stamting testing run purpose and Single safe mode operation

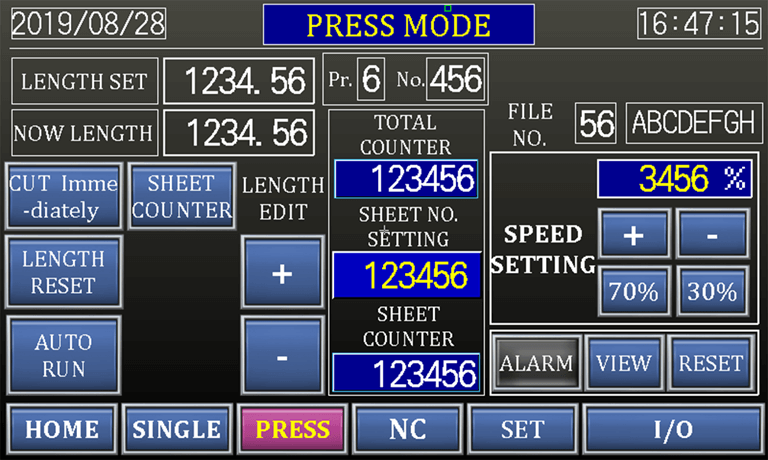

Press Mode : Continual operation mode under press control
NC Mode : Continual operation mode under feeder control

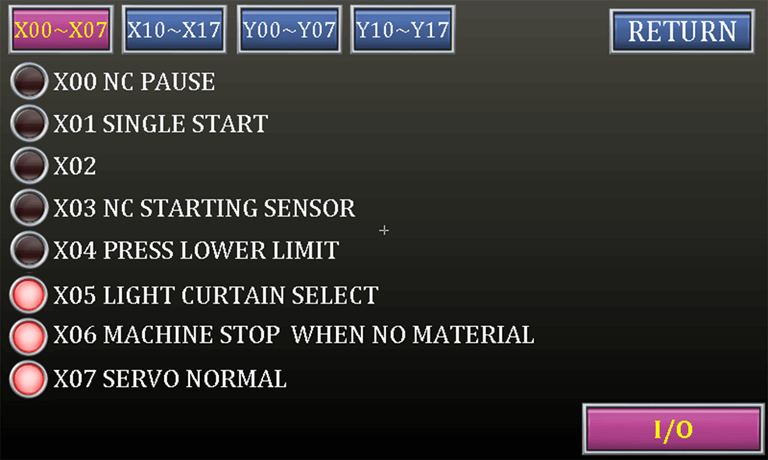

I/0 Monitoring Screen

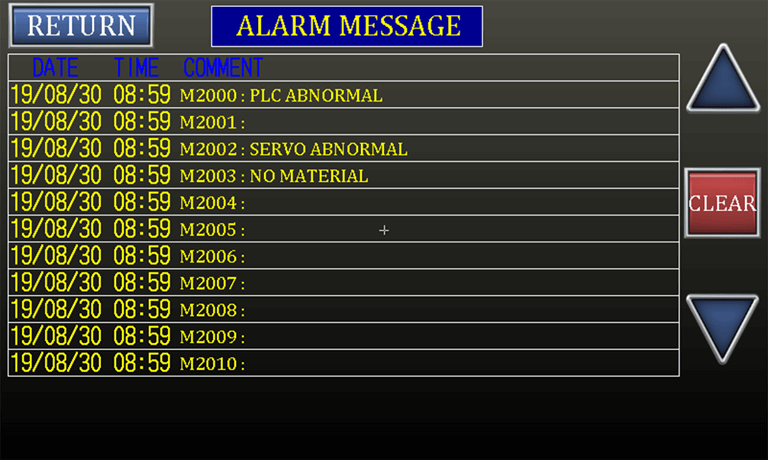

Alarm Message Screen
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.
HNC High Speed Servo + Uncoiler
Specifications
HNC High Speed Servo
| Modle | HNC-150 | HNC-200 | HNC-300 | HNC-400 | HNC-500 | HNC-600 |
| Width of Material (mm) | 150 | 200 | 300 | 400 | 500 | 600 |
| Thickness of Material (mm) | 0.1 ~ 2.0 | |||||
| Feed Roll Up (mm) | 72 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | ||||
| Work Roll Down (mm) | 72 x 1 | 112 x 1 | ||||
| Servo Motor (kW) | 2 | 3.5 | 3.5 | 5.0 | 5.0 | 7.0 |
| Speed (spm) | 400 ~ 600 | |||||
All Specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.
Standard Accessories
- 5.7 “Mitsubishi Touch panel
- PLC controller - Mitsubishi (Made in Japan)
- NC servo controller - Mitsubishi (Made in Japan)
Optional Accessories
- Special software demand.
